The main body of the road mirror is composed of a mirror panel and a backing, wherein the mirror panel is a transparent panel formed by PC board or other transparent materials, and the surface of the mirror panel is smooth. In addition, a reflector or reflective device is pasted or coated on the whole area of the circumferential open side edge of the inner surface of the ball panel and about one centimeter around the mirror panel, and then a vacuum electroplating treatment with appropriate thickness is made on the inner surface of the mirror panel to make the mirror panel look like a mirror.

但光學產品經過鍍膜是避免不了造成產品產生不良現象的。如：水汽、油汽、清洗液、擦拭液、拋光粉等，其中水汽為主要，很難用一般的方法去除干凈，特別對于親水性好、吸附力強的鏡片尤其如此。我們建議是采用超聲波清洗機清洗。

However, the coating of optical products can not avoid the adverse phenomenon of products. For example, water vapor, oil vapor, cleaning fluid, wiping fluid, polishing powder, etc., in which water vapor is the main, it is difficult to remove it by general methods, especially for lenses with good hydrophilicity and strong adsorption. We recommend using ultrasonic cleaning machine for cleaning.

超聲波清洗機對于手工及其它清洗方式不能完全有效地進行清洗的工件，具有顯著的清洗效果，可徹底的達到清洗要求，清除復雜工件藏角、死角、表面等污漬。

Ultrasonic cleaning machine has significant cleaning effect for workpieces that cannot be cleaned completely and effectively by manual and other cleaning methods. It can completely meet the cleaning requirements and remove stains such as hidden corners, dead corners and surfaces of complex workpieces.

這臺道路反射鏡超聲波清洗機都能做到高質量的清洗。道路反射鏡超聲波清洗機還制定了的清洗籃，清洗籃垂直擺動±2公分，并在掃描模式運作，以便清潔。

This road mirror ultrasonic cleaning machine can achieve high-quality cleaning. The road mirror ultrasonic cleaning machine has also developed a professional cleaning basket, which swings vertically ± 2 cm and operates in scanning mode for cleaning.

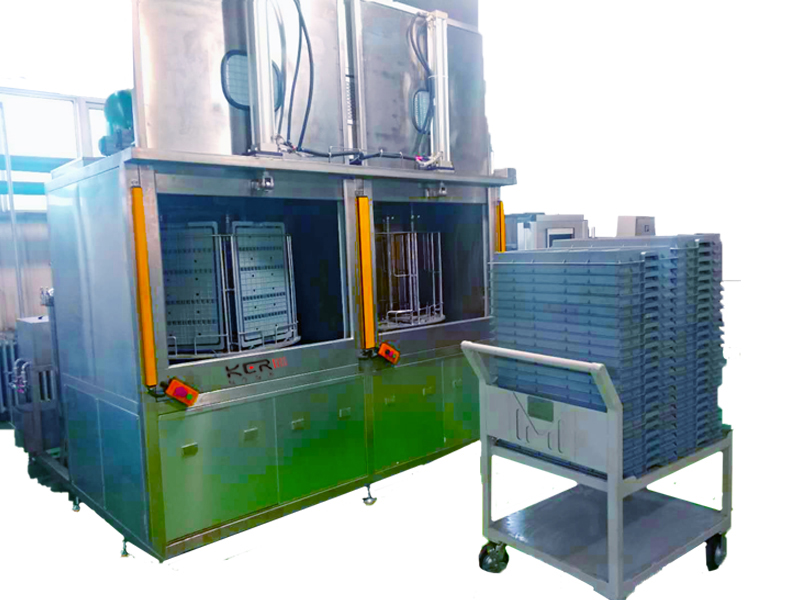

道路反射鏡超聲波清洗機

Ultrasonic cleaning machine for road mirror

道路反射鏡超聲波清洗機整個清洗過程由PLC控制，槽體是由不銹鋼材質制作的超聲波清洗槽、超聲波漂洗槽、慢拉槽等組成一條連續工作的裝置。工作時人工把清洗藍放到上料臺上，傳輸系統依次把清洗藍送往各工序，后由上下料位下料即可。除上下料外，整個清洗、烘干過程無人工干預。整機全封閉式結構，裝有可拆卸的觀察檢修門。

The whole cleaning process of the road mirror ultrasonic cleaning machine is controlled by PLC. The tank body is a continuous working device composed of ultrasonic cleaning tank, ultrasonic rinsing tank and slow pulling tank made of stainless steel. During operation, the cleaning blue is manually placed on the loading platform, and the transmission system sends the cleaning blue to each process in turn. Finally, the material can be unloaded from the upper and lower material positions. In addition to loading and unloading, there is no manual intervention in the whole cleaning and drying process. The whole machine has a fully enclosed structure and is equipped with a detachable observation and access door.

此臺清洗設備的系列參數：

Series parameters of this cleaning equipment:

1、超聲震子數：24只/槽，每只震子功率50W。

1. Number of ultrasonic vibrator: 24 / slot, and the power of each vibrator is 50W.

2、超聲功率：1200W/槽。

2. Ultrasonic power: 1200W / slot.

3、超聲頻率：40KHZ。

3. Ultrasonic frequency: 40KHz.

4、超聲波輸出功率連續可調，全部采用日本進口NTK晶片震子。

4. The ultrasonic output power is continuously adjustable, and all NTK chip vibrators imported from Japan are adopted.

5、震板厚度為SUS 2.5MM不銹鋼板制作，表面鍍硬鉻處理，經久耐用。

5. The shock plate is made of SUS 2.5mm stainless steel plate with hard chromium plating on the surface, which is durable.
